SZ-P15W-3 EU
|
SZ POWER TECHNOLOGY CO.,LTD www.szpowertechnology.com |
|||||

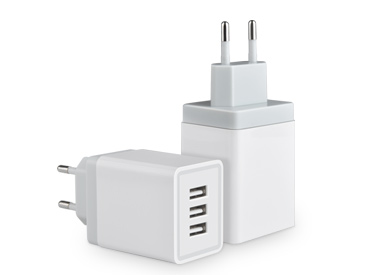

| FEATURES | CERTIFICATIONS | PRODUCT IMAGE | |||
|
※15W OUTPUT POWER ※ OVERCURRENT PROTECTION ※ SHORT CIRCUIT PROTECTION ※ INPUT PROTECTION |
※ CE |
 |
|||
| TYPICAL MODEL LIST | |||||
| I/P VOLTAGE | MODEL | USB PORT 1 & USB PORT 2 & USB PORT 3 | |||
|
90V-264A AC 47-63Hz |
SZ-P15W-3 |
5V 3A MAX |
|||
| OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||
| OUTPUT POWER | 15W | OPERATING TEMP. | 0℃~ 25℃ | ||
| STANDBY POWER | ＜0.075W | COOLING | CONVECTION | ||
| LEAKAGE CURRENT |
＜0.25mA (230Vac/50Hz) |
TEMP. COEFFICIENT | 0.05%/°C | ||
| RIPPLE & BOISE | V x 2%mVp-p @ 25 °C | HUMIDITY |
0%~95% (non-condensing) |
||
| START UP TIME | ＜2S | STORAGE TEMP. | -25℃~ +55℃ | ||
| LINE REGULATION | V±2.0% | ||||
| OUTPUT REGULATION | ±5% | ||||
| PROTECTIONS | Over voltage protection,Short circuit protection,Over current protection,Thermal protection | ||||
| SAFETY STANDARDS | CE | ||||
